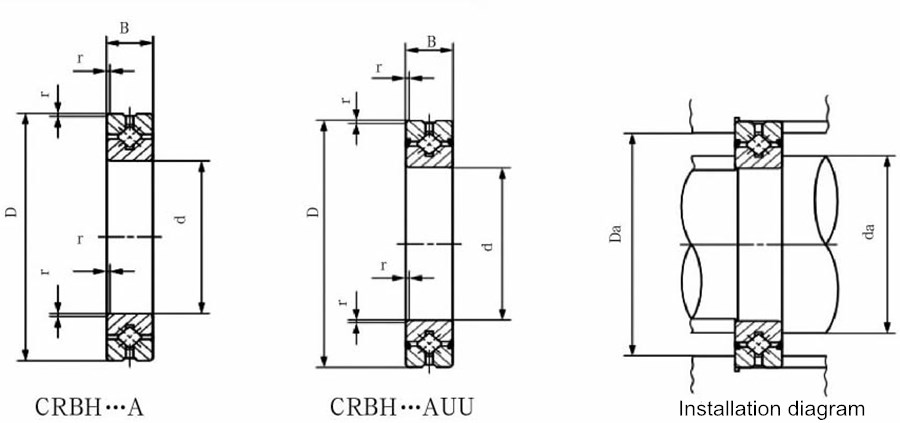

CRBH crossed roller bearing series（Integrated Inner/Outer Ring type）, this model is a compact type of model RU with extremely thin outer and inner rings without mounting holes are provided, the model require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.
CRBH crossed roller bearing characteristics:
1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load：This series bearing can bear double-direction axial load, radial load and tilting moment
4. Small size: This series bearing can save space for machine tools
CRBH Series with intergrated inner ring and outer ring,can be used for both inner ring and outer ring rotation.

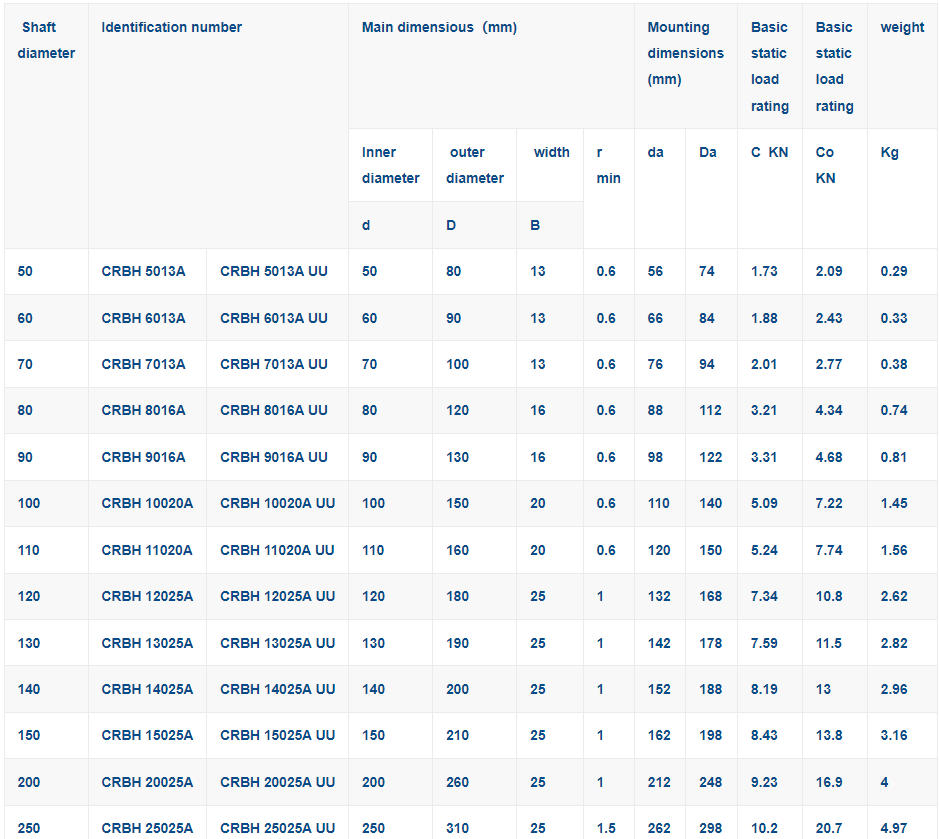

Main models
CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,
CRBH13025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A,
Application area: precision rotation working table,manipulator rotate joints,medical machine,measuring equipments etc.
