Inner Diameter: 50-800mm Outer Diameter: 80-1030mm Width: 13-100mm Weight: 0.29-274kg

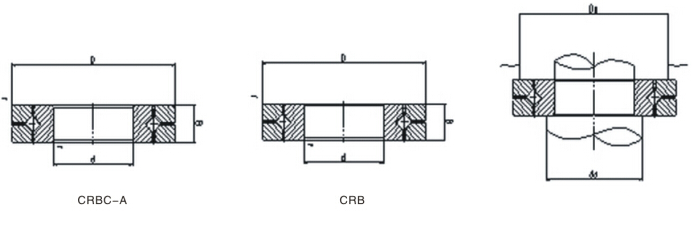

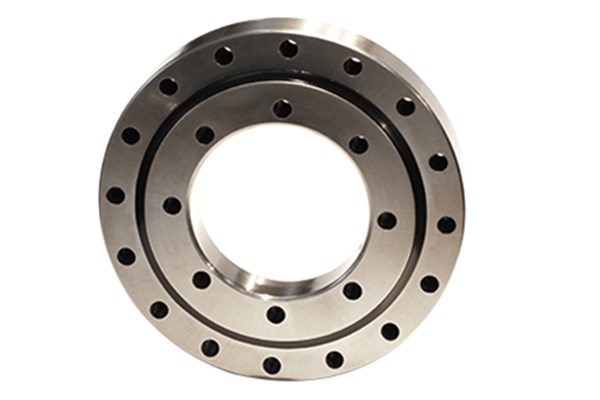

CRBC crossed roller bearing standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body.
CRBC series( separatable outer ring and inner ring rotation）,with cage and full complement with rollers,suitable for the parts where the inner ring require high rotate accurancy .

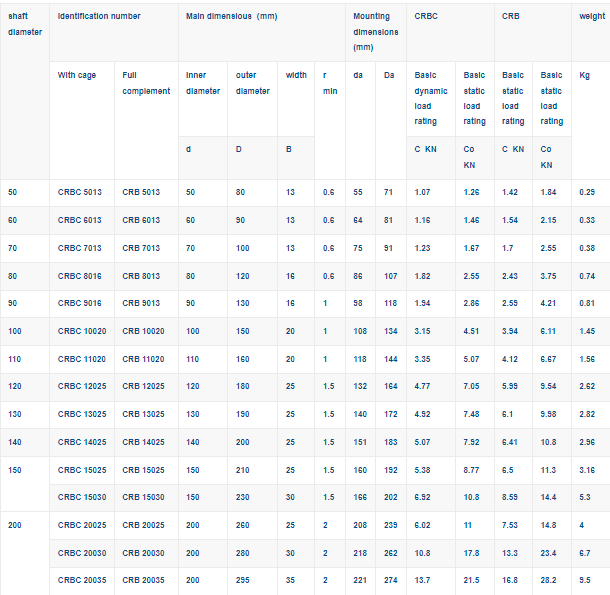

Include CRBC5013,CRBC6013,CRBC7013,CRBC8016,CRBC9016,CRBC10020,CRBC11020,CRBC12025,CRBC13025,CRBC14025,CRBC15025,CRBC15030,CRBC20025,CRBC20030,CRBC15035
china precision cross roller bearing manufacturer
