THK SHS-V/SHS-VM Linear Guide

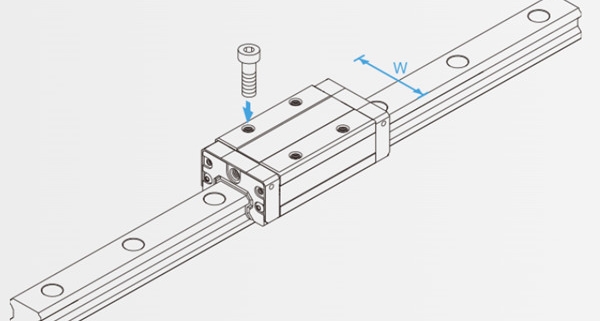

THK SHS-V / SHS-VM type linear guide is the LM block. THK SHS type linear guide has a smaller width (W) and tapped holes.
SHS-V guides used in places where the space for table width is limited.
Long-term maintenance free,High accuracy,Heavy load,Self-adjusting capability,4-way equal load,Bolts mounted from above

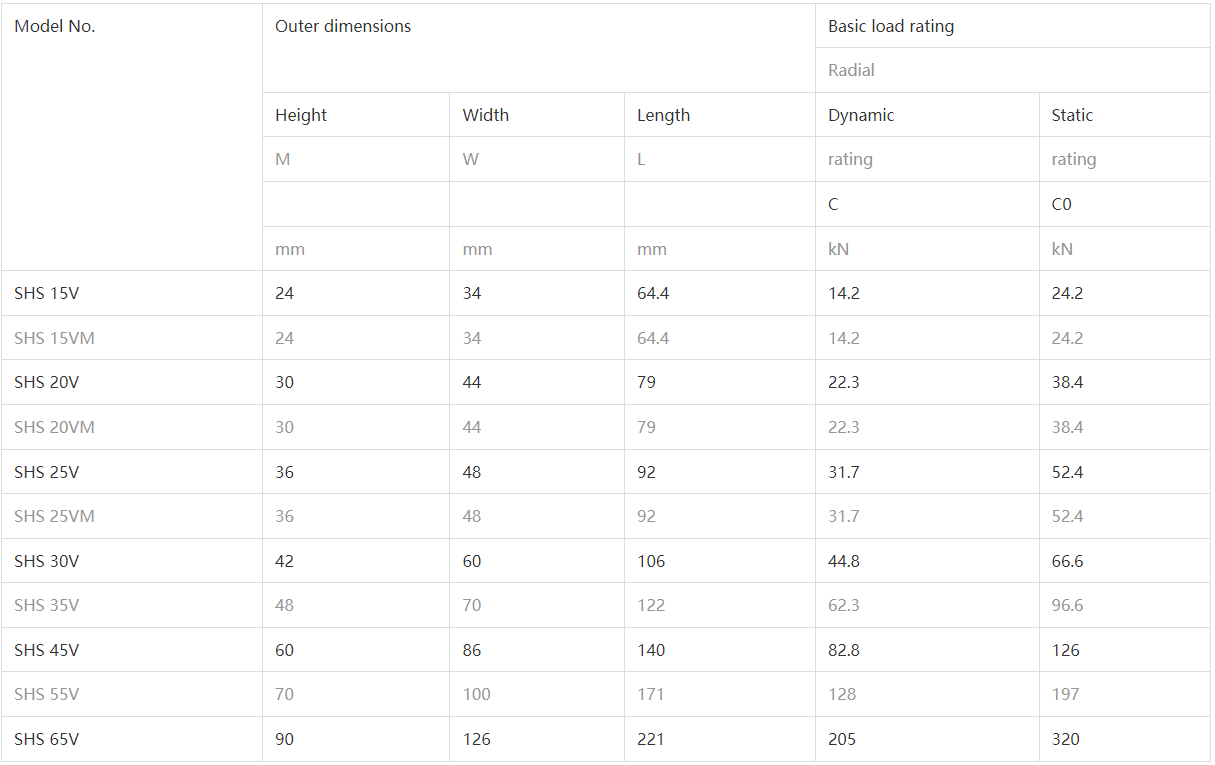

Basic load rating(kN) : Basic dynamic load rating 14.2 to 205 / Basic static load rating 24.2 to 320
Size : 15,20,25,30,35,45,55,65
THK SHS-V / SHS-VM guides are designed to withstand heavy loads and provide long service life. The precision-ground raceways and balls ensure smooth and accurate movement, reducing friction and wear. This results in extended operating life and reduced downtime for maintenance.
Model:SHS 15V SHS 15VM SHS 20V SHS 20VM SHS 25V SHS 25VM SHS 30V SHS 35V SHS 45V SHS 55V SHS 65V
