THK LM guides are designed to withstand heavy loads and provide long service life. The precision-ground raceways and balls ensure smooth and accurate movement, reducing friction and wear. This results in extended operating life and reduced downtime for maintenance.

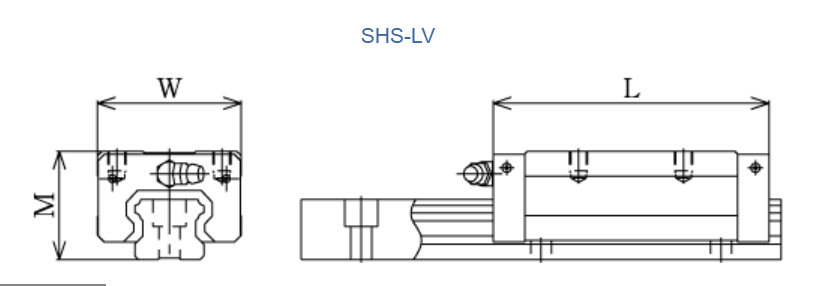

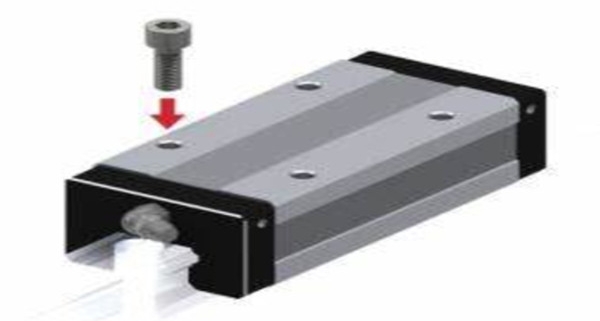

The THK LM block has the same cross-sectional shape as model SHS-LV, but has a longer overall LM block length and a greater rated load.
THK SHS-LV type block each row of balls is arranged at a contact angle of 45°, this model can be used in all directions.

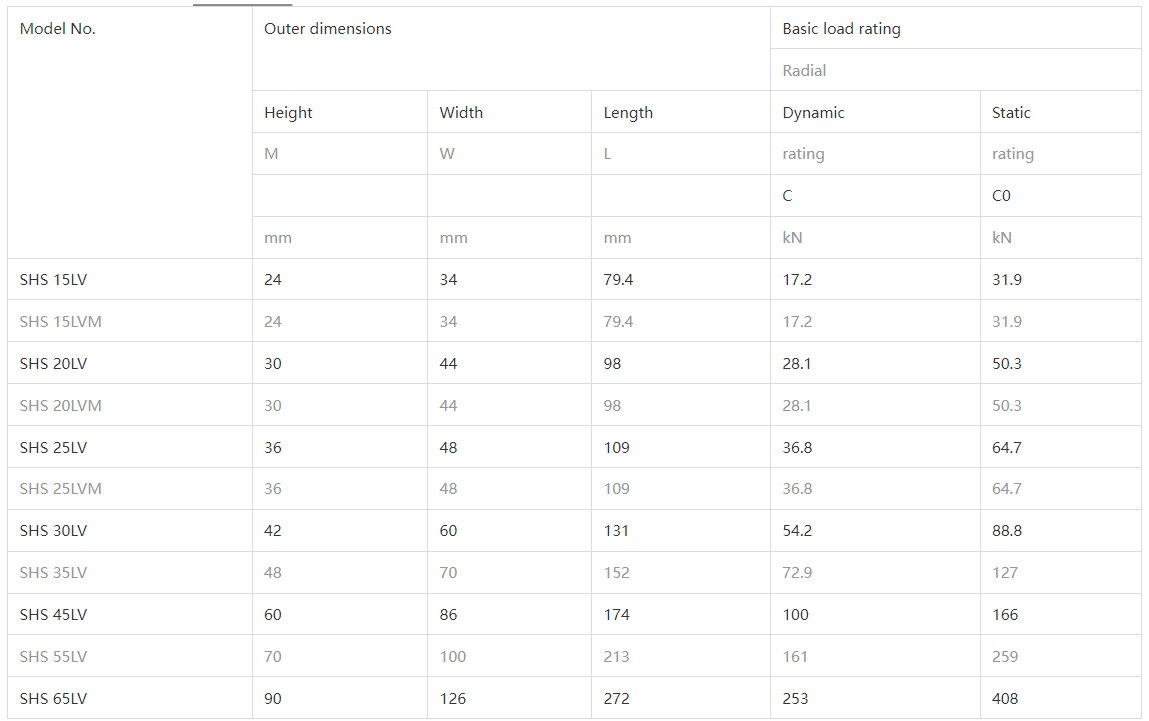

Basic load rating (kN): Basic dynamic load rating 17.2 to 253
Basic static load rating 31.9 to 408
Size : 15,20,25,30,35,45,55,65
Model: SHS15LV,SHS20LV,SHS25LV,SHS30LV,SHS35LV,SHS45LV,SHS55LV,SHS65LV
