THK SSR-XW Guide

THK SSR-XW GuideTHK SSR-XW linear guide design with a low sectional height and the ball contact structure at 90 in the radial direction make this model an optimal model for horizon...

THK SSR-XW Guide
THK SSR-XW linear guide design with a low sectional height and the ball contact structure at 90° in the radial direction make this model an optimal model for horizontal guide units.

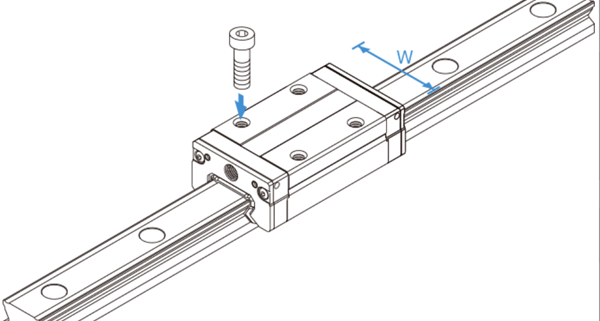

With this type, the LM block has a smaller width (W) and tapped holes. Used in places where the space for the table width is limited

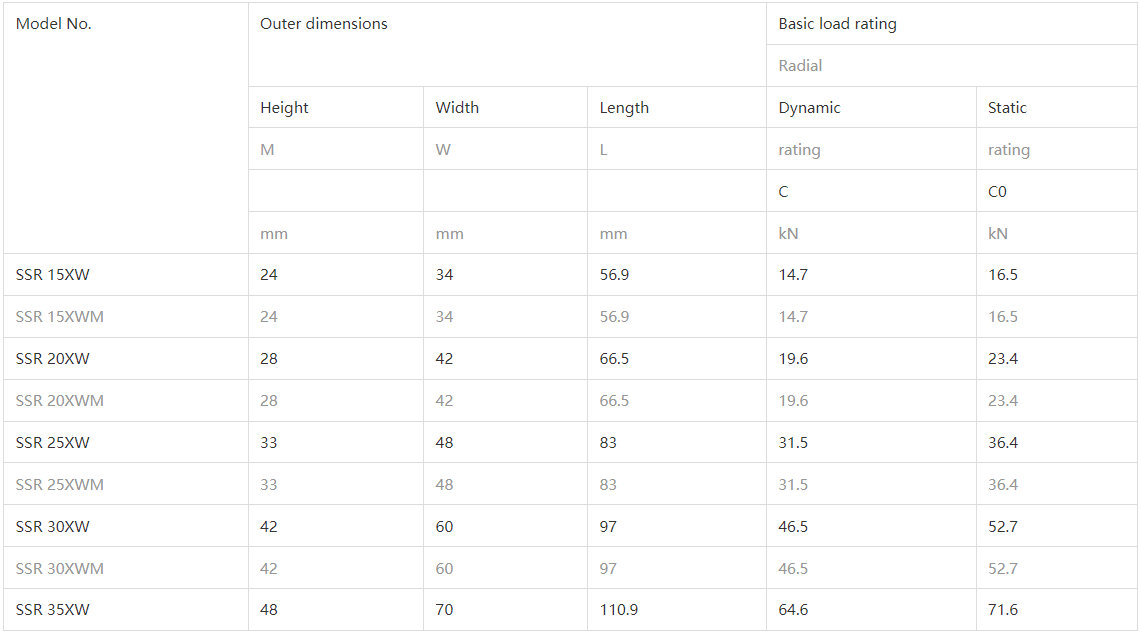

Basic load rating (kN): Basic dynamic load rating 14.7 to 64.6 / Basic static load rating 16.5 to 71.6
Size : 15,20,25,30,35

Model:SSR 15XW, SSR 15XWM, SSR 20XW,SSR 20XWM, SSR 25XW,SSR 25XWM,SSR 30XW,SSR 30XWM,SSR 35XW

THK LM guides are designed to withstand heavy loads and provide long service life. The precision-ground raceways and balls ensure smooth and accurate movement, reducing friction and wear. This results in extended operating life and reduced downtime for maintenance.
