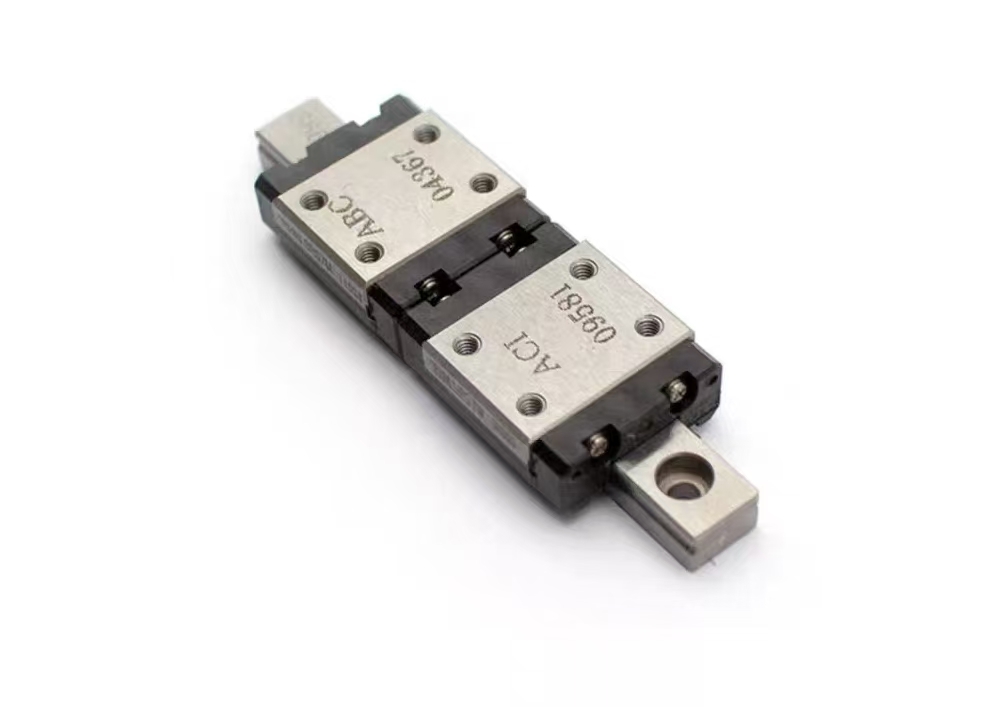

THK SRS minature Linear Guide
THK SRS type is the smallest caged ball LM guide and its mounting dimensions are interchangeable with the conventional RSR models.
THK miniature linear guide with compact structure. The minature linear guide can be mounted in areas in space saving areas, and the small linear guide can be achieved the purpose of reducing space and weight.
The SRS type linear guide Use of ball cages eliminates friction between balls and retains lubricant, thus achieving low dust
gen-eration.

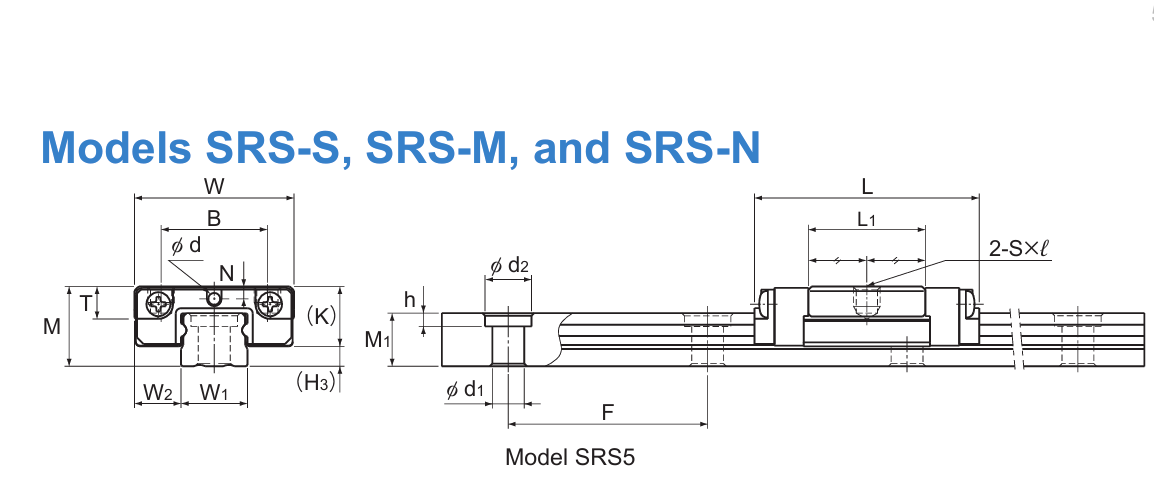

Models SRS-S, SRS-M and SRS-N
Since stainless steel is used in the SRS block, SRS linear rail and balls, these models are highly resistant to corrosion and environment.THK SRS linear guide can be stainless steel,which widely used in industry areas.

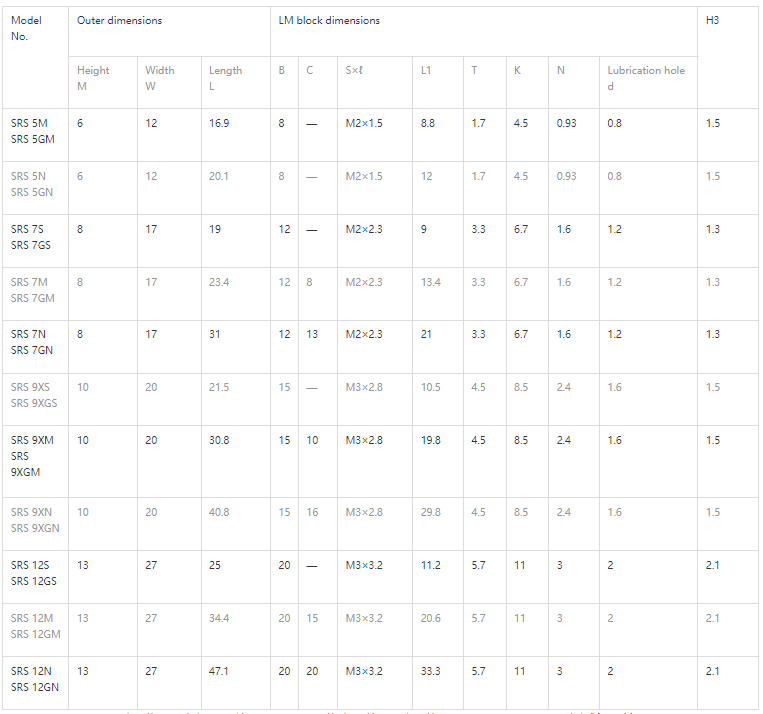

Model NO.: SRS5M SRS7M SRS9XS SRS12M SRS7S SRS9XS SRS12N
