With the increasing popularity of industrial automation equipment, people pay more and more attention to the use of linear guide rails, so the size of linear guide rails should be maintained within a certain level, so as to ensure the accuracy of the guide rails. The DF (45- ° 45 °) combination from the arc groove, during installation, can be absorbed by the inside of the rail slider by the elastic deformation of the steel ball and the handling of the touch point, even if the installation surface is somewhat biased, resulting in the effect of active self-aligning ability.

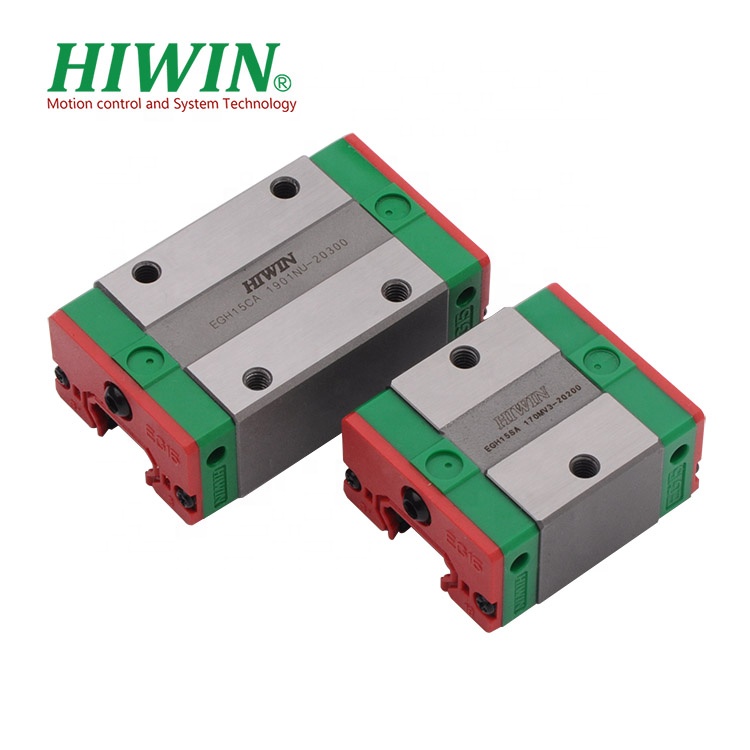

Due to the strict control of consumer manufacturing accuracy, the size of the linear guide can be maintained within a certain level, and the slider is designed with a sticker to avoid falling steel balls. Therefore, some series of precision are interchangeable. Customers can order guide rails or sliders according to their needs, and can also separate storage guide rails and sliders to reduce storage space. Linear Module Slide Manufacturer
The use of four-row circular arc grooves, combined with four rows of steel balls and other 45-degree touch angles, allows the steel balls to reach the desired two-point touch structure, capable of withstanding loads from up, down, and left and right directions; if necessary, preloading can be applied to improve rigidity.
